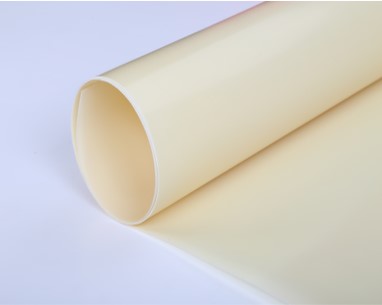

IONSEP® IEM
IONSEP® is semi-homogeneous and improved from traditional heterogeneous membrane by introducing a third monomer. Its unique “sea-island” structure improves the microscopic morphology, resulting in membranes with lower electrical resistance and better chemical stability.
Lower resistance: compared with traditional heterogeneous membrane, its resistance is reduced by 30%-50%, which reduce the energy consumption.
High selective permeability brings high current efficiency.
NaCl solution can be economically concentrated to 15% or above, while Na2SO4 is18%。
Cost-effective & extremely competitive.
It's very cost-effective and used in various industries for desalination and ions concentration, especially used in highly polluting wastewater treatment which needs frequency replacement.
Desalination: Food, medicine, chemical, biological fermentation industries, etc.;
ZLD: chemical, papermaking, coal industry, printing and dyeing, hydrometallurgy, steel, coal-fired power stations, petroleum refining, landfill leachate, etc.
Thickness （mm） | Burst strength （MPa） | Resistance（0.5N NaCl） （Ω·cm2） | Temperature （℃） | pH Running | pH Cleaning |
0.4~0.5 | >0.6 | 6-8 | 25~40 | 2-10 | 1-12 |
* This membrane can be customized
according to customers’ requirements, such as acid/alkali resistance,
temperature resistance, low DOP, etc.
Size（mm） | Unit | Pre-cut | Package | Mate |
800×1600 | Piece | Yes | Carton | CAM (ED) |
